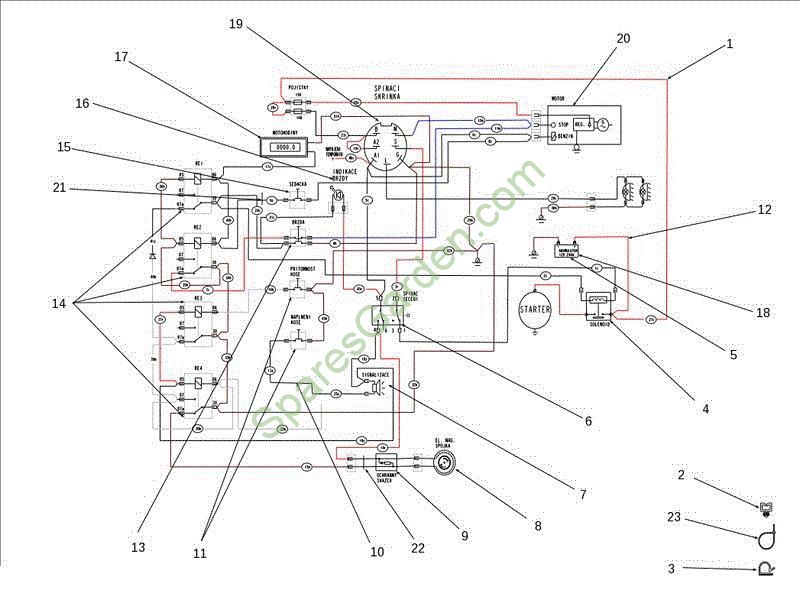

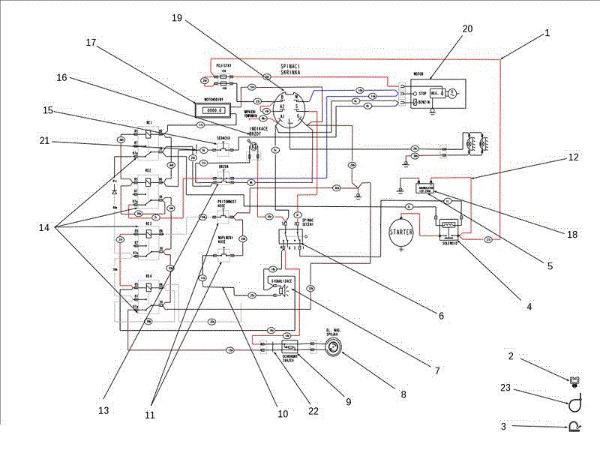

Electric diagram OM 106J/16H Cat.2011 Garden tractor

Electric diagram OM 106J/16H Cat.2011 Garden tractor

Garden tractors OM 106J/16H Cat.2011 Garden tractor Electric diagram Brand Oleo-Mac
Fabricante: OLEOMAC
In case of spare parts order of OM 106J/16H Cat.2011 Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
In case of spare parts order of OM 106J/16H Cat.2011 Garden tractor brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
*
*
*

1 Wiring

Spare Part Wiring Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€659.72 Iva incluído

2 Cap

Spare Part Cap Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 6
€20.02 Iva incluído

3 Mount

Spare Part Mount Electric diagram Garden tractors Brand Oleo-Mac
€3.46 Iva incluído

4 Solenoid

Spare Part Solenoid Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€56.72 Iva incluído

5 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€11.37 Iva incluído

6 Switch

Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€65.73 Iva incluído

7 Shoe

Spare Part Shoe Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€25.08 Iva incluído

8 Clutch

Spare Part Clutch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€686.25 Iva incluído

9 Diode

Spare Part Diode Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€25.24 Iva incluído

10 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€12.35 Iva incluído

11 Switch grassbag

Spare Part Switch grassbag Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 2
€55.76 Iva incluído

12 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€15.92 Iva incluído

13 Switch

Spare Part Switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€67.59 Iva incluído

14 Starter relay

Spare Part Starter relay Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 4
€27.09 Iva incluído

15 Micro-switch

Spare Part Micro-switch Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€41.24 Iva incluído

16 Warning light

Spare Part Warning light Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€36.43 Iva incluído

17 Counter

Spare Part Counter Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€204.55 Iva incluído

18 Wire

Spare Part Wire Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€15.92 Iva incluído

19 Switch box

Spare Part Switch box Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€71.57 Iva incluído

20 Cable

Spare Part Cable Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€24.32 Iva incluído

22 Bushing

Spare Part Bushing Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 1
€4.83 Iva incluído

23 Strap

Spare Part Strap Electric diagram Garden tractors Brand Oleo-Mac Required Quantity: 8
€0.63 Iva incluído
